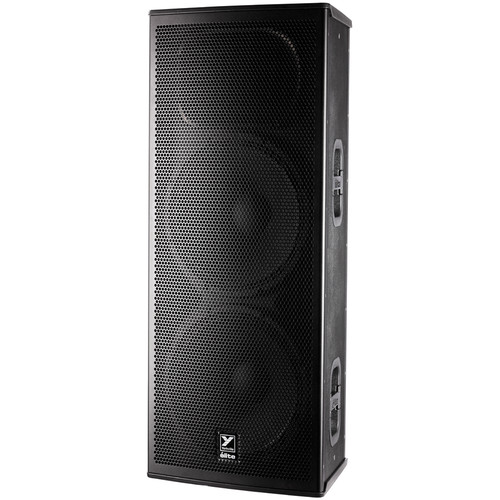

Elite Series – EF215P
2 x 15-inch/3-inch – 1200 Watts
Yorkville Sound’s most bass heavy full-range speaker.
2×15-Inch Powered Loudspeaker
Features
- Completely redesigned next generation élite 1200-watt Front of House box
- ABS coated birch plywood cabinet construction
- Multiband DSP Limiting with 4 preset playback performance modes
- 3-inch titanium diaphragm compression driver
- 2 x 15-inch neodymium woofers with 3-inch voice coil
- iOS and Android app for added cabinet control
- Made in Canada
Overview
Yorkville Sound expands the Elite family of powered speakers by introducing the EF215P, the only double 15″ cabinet in the current Elite line-up. The most bass-heavy full range cabinet in the Yorkville catalogue, Elite’s EF215P consists of two 15″ speakers with a 3.5″ titanium horn driver, dispersing at 60″X40″. Housed in a bass reflex cabinet, the EF215P is designed to deliver big sound just as it is, without any modifications.
Specifications
| System Type | 2-Way |
| Active or Passive | Active |
| Power Rating (Watts) | 1200 Watts (2400 Watts Peak) |
| Max SPL (dB) | 133dB Peak (127dB Continuous) |
| Frequency Response (Hz +/- 3dB) | 40 – 16k (Hz +/- 3dB) |
| Crossover Frequency (Hz) | 1100 |
| Driver Configuration | 2 x 15-inch, 3-inch Diaphragm |
| HF Driver(s) | 3-inch Voicecoil (Titanium Diaphragm) |
| HF Dispersion (°H x °V) | 60×40 |
| LF Power Amplifier (Watts) | 900 |
| LF Amplifier Type | Class-D |
| Power Cable | 25 ft (7.6m) Heavy Gauge Detachable IEC |
| Outputs | 1 x XLR-M Thruput |
| Inputs – 1/4″ Jacks | 1 x XLR & 1/4-inch Combi-jack Main Input |
| Inputs – XLR | 1 XLR microphone Input |
| Input Impedance (Bal/UnBal) | 95KOhms / 90kOhms |
| Input Sensitivity (Vrms Sine) | +4dBv / 1.23V |
| Controls | Mixer Enable Mic Input w/level Line Input w/level DSP Mode (Club, Concert, Vocal, Custom) Sub (100Hz HP Filter) Bluetooth Control Enable Master Level |
| Bar Handles | 4 x Side / 1 x Top |
| Flypoints | 8 x ¼-20 (2 Top, 2 Bottom, 2 Each Side, 2 Pullback) |
| Pole Mount Adapter (1 3/8″-3.5cm) | None |
| Enclosure Materials | ABS Coated Baltic Birch Plywood |
| Dimensions (DWH xbackW, inches) | 14 x 18.5 x 44.5 x 12 |
| Dimensions (DWH xbackW, cm) | 35.6 x 47 x 113 x 30.5 |
| Weight (lbs/kg) | 93 / 42 |
Specifications subject to change without notice
