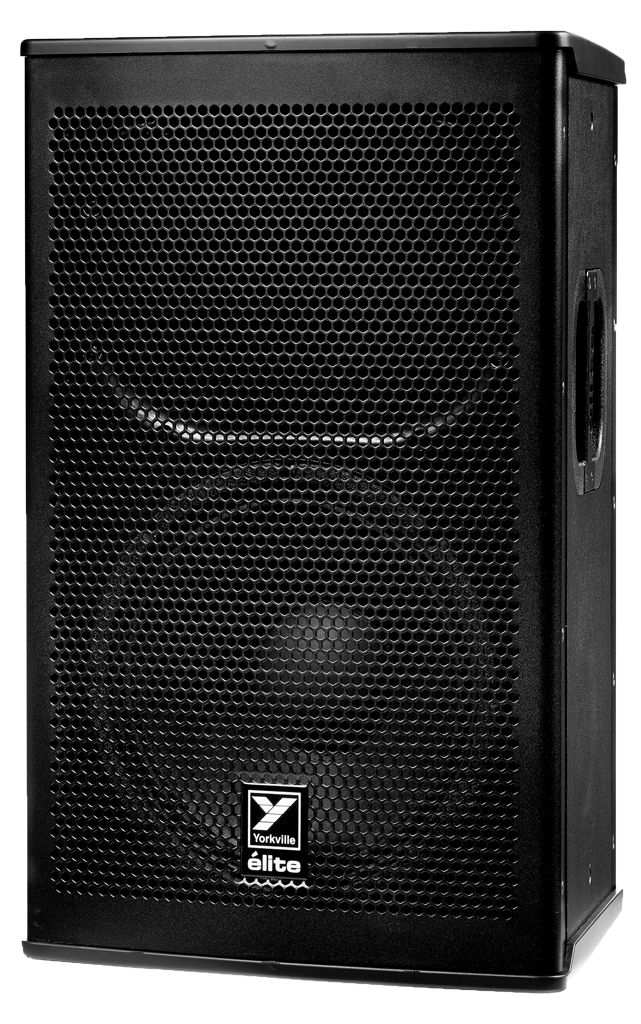

EF12P
Elite 12-inch / 3-inch – 1200 watts
In the 1980’s, Yorkville Sound changed the face of high-powered portable speakers with the launch of the élite series. Indestructible wood cabinets with high output drivers offered PA professionals & weekend warriors alike a new level of high SPL speakers in portable packages. 30 years later, and we are changing the rules again.
Features
- High Output, High Quality and extremely durable Dedicated Front of House box
- Completely Redesigned Next Generation Elite Cabinet
- ABS Coated Birch Plywood Cabinet Construction
- Multiband DSP Limiting with 4 Preset Playback Performance Modes
- 3-inch Titanium Diaphragm Compression Driver for Reduced Distortion at High SPL
- 12-inch Neodymium Woofer with 3-inch Voice coil
- iOS and Android App for Added Cabinet Control (Coming Soon)
- Made in Canada
Specifications
| System Type | 2-Way |
| Active or Passive | Active |
| Power Rating (Watts) | 1200 Watts (2400 Watts Peak) |
| Max SPL (dB) | 131dB Peak (125dB Continuous) |
| Frequency Response (Hz +/- 3dB) | 47 – 16k (Hz +/- 3dB) |
| Crossover Frequency (Hz) | 1100 |
| Driver Configuration | 12-inch, 3-inch Diaphragm |
| HF Driver(s) | 3-inch Voice coil (Titanium Diaphragm) |
| HF Dispersion (°H x °V) | 60×40 |
| LF Driver(s) | 12-inch Neo magnet w/3-inch Voice coil |
| HF Power Amplifier (Watts) | 300 |
| HF Amplifier Type | 3-Tier High Headroom |
| LF Power Amplifier (Watts) | 900 |
| LF Amplifier Type | Class-D |
| Power Cable | 25 ft (7.6m) Heavy Gauge Detachable IEC |
| Current Draw | 2A Typical, 3.2A Max |
| In / Out Connections | 1 x XLR & 1/4-inch Combi-jack, RCA Line Inputs 1 x XLR microphone Input 1 x XLR & 1/4-inch Combi-jack Main Input 1 x XLR-M Thruput |
| Input Impedance (Bal/UnBal) | 95KOhms / 90kOhms |
| Input Sensitivity (Vrms Sine) | +4dBv / 1.23V |
| Controls | Mixer Enable Mic Input w/level Line Input w/level DSP Mode (Club, Concert, Vocal, Custom) Sub (100Hz HP Filter) Bluetooth Control Enable Master Level |
| Bar Handles | 2 x Side / 1 x Top |
| Flypoints | 8 x ¼-20 (2 Top, 2 Bottom, 2 Each Side, 2 Pullback) |
| Pole Mount Adapter (1 3/8″-3.5cm) | 1 Bottom (1 3/8-inch / 3.5cm) |
| Enclosure Materials | ABS Coated Baltic Birch Plywood |
| Dimensions (DWH xbackW, inches) | 14.5 x 18.6 x 28.2 x 11.1 |
| Dimensions (DWH xbackW, cm) | 36.8 x 47.25 x 71.6 x 28.2 |
| Weight (lbs/kg) | 59 / 26.8 |
