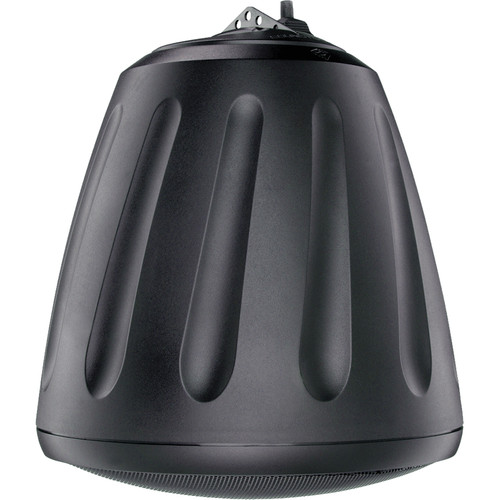

SoundTube’s RSi series incorporates BroadBeam® full-frequency dispersion technology, cost-saving innovations and design-forward styling to address the unique challenges of open-ceiling speaker installations.

• Patented BroadBeam® dispersion technology allows fewer speakers to cover more area with full-frequency sound.
• Included with every new RSi speaker is a fast-action, four-pin Euroblock connector that speeds up wiring, allows simplified daisy-chaining and provides the option for pre-wiring where “division of labor” codes exist.
• Installation hardware, including hanging cables, snap-link, fast-adjusting cable clamps and wire ties, is packaged with each RSi speaker.
• New speed-tap power settings save customers time and money on ordering, inventory tracking, installation and system tuning.
• 25, 70.7 and 100 Volt transformer options with 8 Ohm bypass.
• High-frequency driver protection with automatic reset.
• Durable construction, powder-coated grille and terminal weather boot allow for indoor or outdoor installations.
• May be surface-mounted to walls, beams or poles with optional bracket.

SPECIFICATIONS:

• Frequency Response: (-3 dB) 63 Hz – 22 kHz
• Low Frequency: (-10 dB) 45 Hz – 22 kHz
• Sensitivity: 90.5 dB
• Power Capacity RMS: 90 W
• Max SPL dB @ 1 M: 110.5 dB
• Nominal Impedance: 8 Ohm
• Transformer Options: 25 / 70.7 / 100 Volt with voice coil/8 Ohm direct.
• Woofer: 165 mm / 6.5″ Poly
• Tweeter: 1″ Convex Aluminum w/ BroadBeam® Waveguide
• Connections: 5 mm, 4-pin Euroblock
• Visible Height: 14.31″
• Visible Diameter: 12.1″
• Weight: 13.5 lbs
• Color: Black
