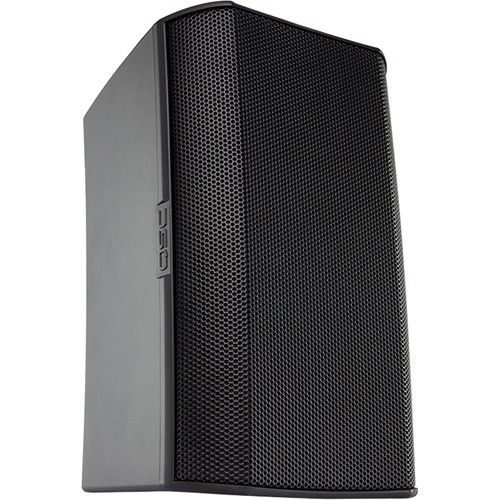

AD-S4T
4.5-inch 2-way, 120° conical DMT™
Features
- 4.5-inch weather treated woofer; 0.75-inch silk dome tweeter
- 120° conical DMT™ coverage
- 30 watt low-saturation and low-loss 70/100V transformer with 😯 bypass
- Maximum peak SPL 110 dB (8 ohm bypass)
- Directivity Matched Transition® (DMT) ensures smooth, uniform frequency response over the coverage area
- X-Mountâ„¢ system enables the loudspeaker to be easily installed and deployed at a variety of angles with no slippage over time
- Advanced voicing filter sets using QSC Intrinsic Correctionâ„¢, available through either Q-SYS or CXD amplifier platform
- Lightweight ABS enclosures offer long-term durability and lasting good looks
- Sealed input panel cover and powder coated aluminum grilles for added weather resistance
- Meets IEC60529 IP-54 for dust and splash resistance
- Available in black (RAL 9011) or white (RAL 9010)
- Complete EASE, CF2, CAD, and BIM information available online
| Net weight | 6.5 lb / 2.9 kg |
| Product dimensions (HWD) inches | 10.3 × 6.34 × 6.42 |
| Product dimensions (HWD) mm | 261 × 161 × 163 |
| Shipping weight | 16.8 lb / 7.65 kg (pair packed) |
| Shipping dimensions (HWD) inches | 15.5 × 10.3 × 18 (pair packed) |
| Shipping dimensions (HWD) mm | 394 × 261 × 458 (pair packed) |
| Included accessories | X-Mount mounting system, Euroblock connector, input panel cover |
