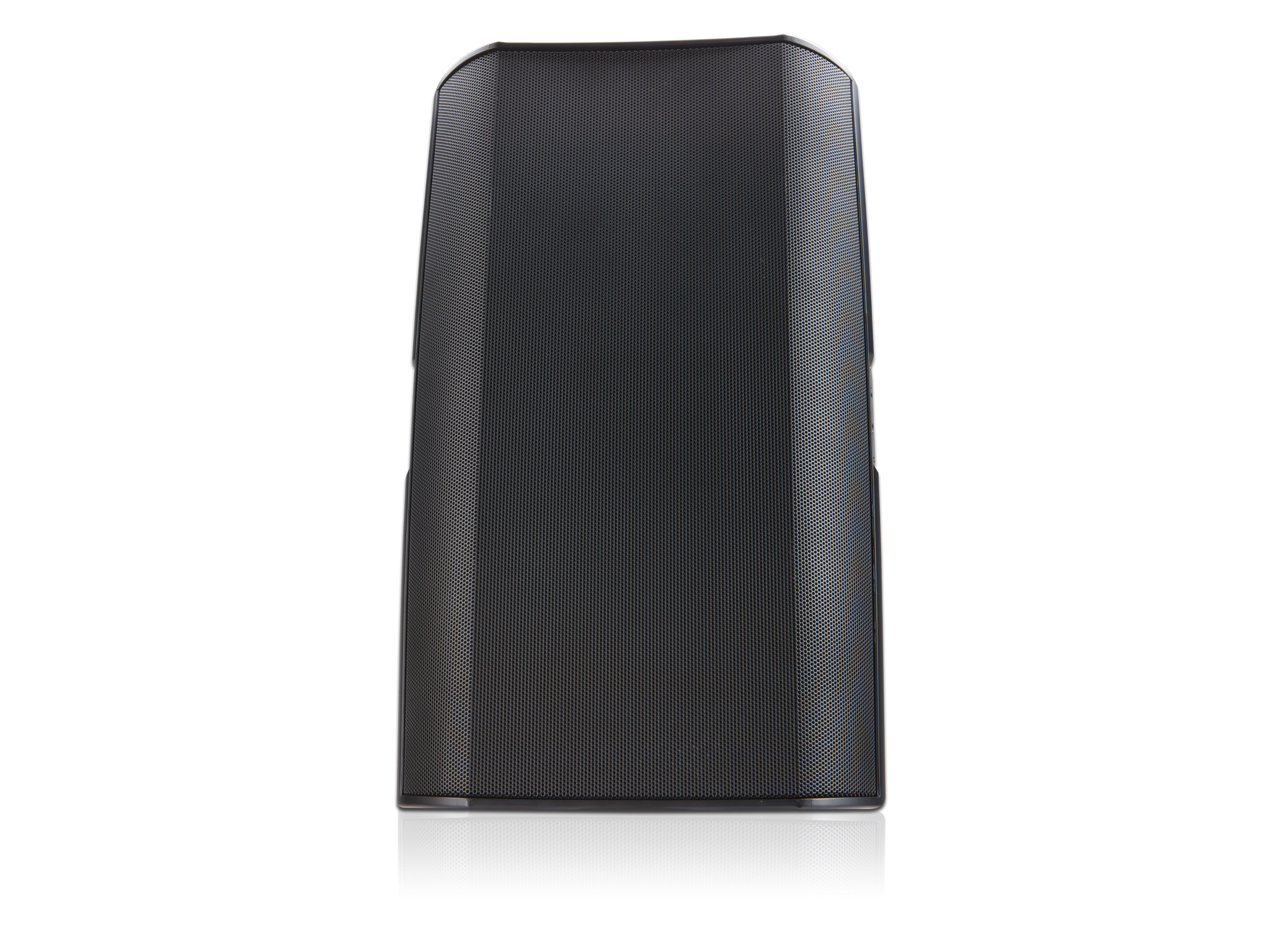

Features
- 12-inch weather treated woofer; 1.4-inch compression driver
- 75° conical DMT coverage
- Maximum peak SPL 126 dB
- DMT™ (Directivity Matched Transition) ensures smooth, uniform frequency response over the coverage area
- X-Mount™ system enables the loudspeaker to be easily installed and deployed at a variety of angles with no slippage over time
- Optional Yoke mount and M10 Kit-C for additional installation versatility
- Advanced voicing filter sets using QSC Intrinsic Correction™, available through either Q-SYS processing or CXD amplifier platforms
- Lightweight ABS enclosures offer long-term durability and lasting good looks
- Sealed input panel cover and powder coated aluminum grilles for added weather resistance
- Meets IEC60529 IP-54 for dust and splash resistance
- Available in black (RAL 9011) or white (RAL 9010)
- Complete EASE, CF2, CAD, and BIM information available online
| System Details | AD-S12 |
| Effective frequency range1 | 52 Hz – 20 kHz |
| Rated noise power / voltage2 | 300 watts / 50 volts (rms) |
| Broadband Sensitivity3 | 95 dB SPL |
| Coverage angle (-6 dB) | 75° conical DMT |
| Directivity factor (Q) | 12 |
| Directivity Index | 11 dB |
| Maximum continuous SPL4 | 120 dB |
| Maximum peak SPL4 | 126 dB |
| Rated impedance | 8 ohms |
| Recommended amplifier power (loudspeaker “program” power) | 600 watts |
| Transformer taps | n/a |
| HF transducer | 1-inch exit / 1.4-inch voice coil compression driver |
| LF transducer | 12-inch weather resistant paper cone woofer, 2.5-inch / 64 mm voice coil |
| Input connector type | Euroblock connector with parallel output terminals |
| Enclosure material | Painted ABS polymer |
| Grille material | Powder coated aluminum |
| Enclosure Details | |
| Ingress protection | IP-54 |
| Operating environment | Designed for indoor and outdoor use |
| Testing | The AD Series loudspeakers qualified for outdoor use using the following tests:
|
| Product Dimensions (HWD) inches | 23.4 x 13.9 x 12.7 |
| Product Dimensions (HWD) mm | 594 x 354 x 323 |
| Net weight | 35.2 lb / 16 kg |
| Shipping weight | 46.3 lb / 21 kg |
| Shipping dimensions | 34.5-inch x 17.9-inch x 17.2-inch (765 x 455 x 437 mm) |
| Included accessories | X-Mount mounting system, Euroblock connector, Input panel cover |
| Optional accessories | YMS12 yoke mount, M10 Kit-C |
