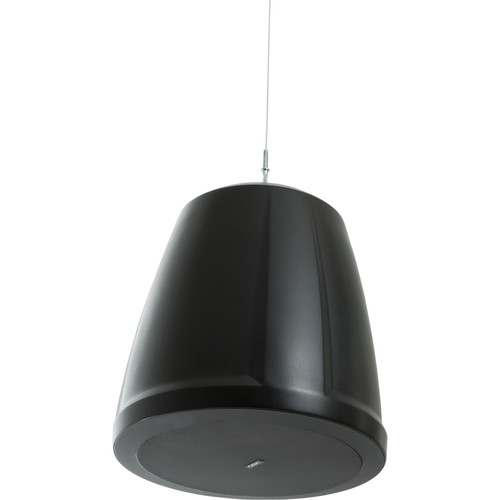

The QSC AcousticDesign™ AD-P6T is a 6.5-inch two-way pendant-mount loudspeaker ideally suited for a wide variety of foreground and background sound reinforcement applications which utilize 70/100V or 16Ω bypass configurations.

• Consistent tonal characteristics across the entire AcousticDesign family in surface, ceiling, and pendant applications
• DMT (Directivity Matched Transition™) waveguide ensures smooth, uniform frequency response over the coverage area
• Snap-fit magnetic grille
• 2x quick-link suspension cables and slip-lock fasteners provided
• Intrinsic Correction™ voicings available via Q-SYS Platform and CXD amplifiers
• Low-saturation and low-loss 70/100V transformers with 16Ω bypass
• Blemish-free removable logo
• Sealable input cover to prevent moisture from entering the input terminal block
• Available in black (RAL 9011) or white (RAL 9010)
• Complete EASE, CF2, CAD, & BIM information available online

Specifications

• Effective frequency range: 55 Hz – 20 kHz
• Rated noise power / voltage: 60W / 31 V (rms)
• Rated coverage (-6 dB): 135° conical DMT™
• Directivity factor: 6.5
• Directivity index (dB): 8
• Maximum continuous SPL: 106
• Maximum peak SPL: 112
• Nominal impedance: 16 Ω
• Recommended amplifier: 120W
• LF transducer: 165 mm (6.5″) weather treated paper cone woofer
• HF transducer: 19 mm (0.75″) aluminum dome tweeter
• Input connector type: Euroblock connector with parallel output
• Enclosure material: Impact Resistant ABS
• Grille material: Powder coated steel
• Ingress protection: IP-34
• Operating environment: Designed for indoor use
• Operating temperature range: -20°C to 50°C (-4°F to 122°F)
• Net weight: 9 lbs. (4.1 kg)
• Product dimensions (Diameter x Height): 11.3″ x 12.7″ (287 x 323 mm)
• Shipping weight: 11.8 lbs. (5.4 kg)
• Shipping dimensions (H x W x D): 13.5″ x 16″ x 14″ (343 x 406 x 356 mm)
