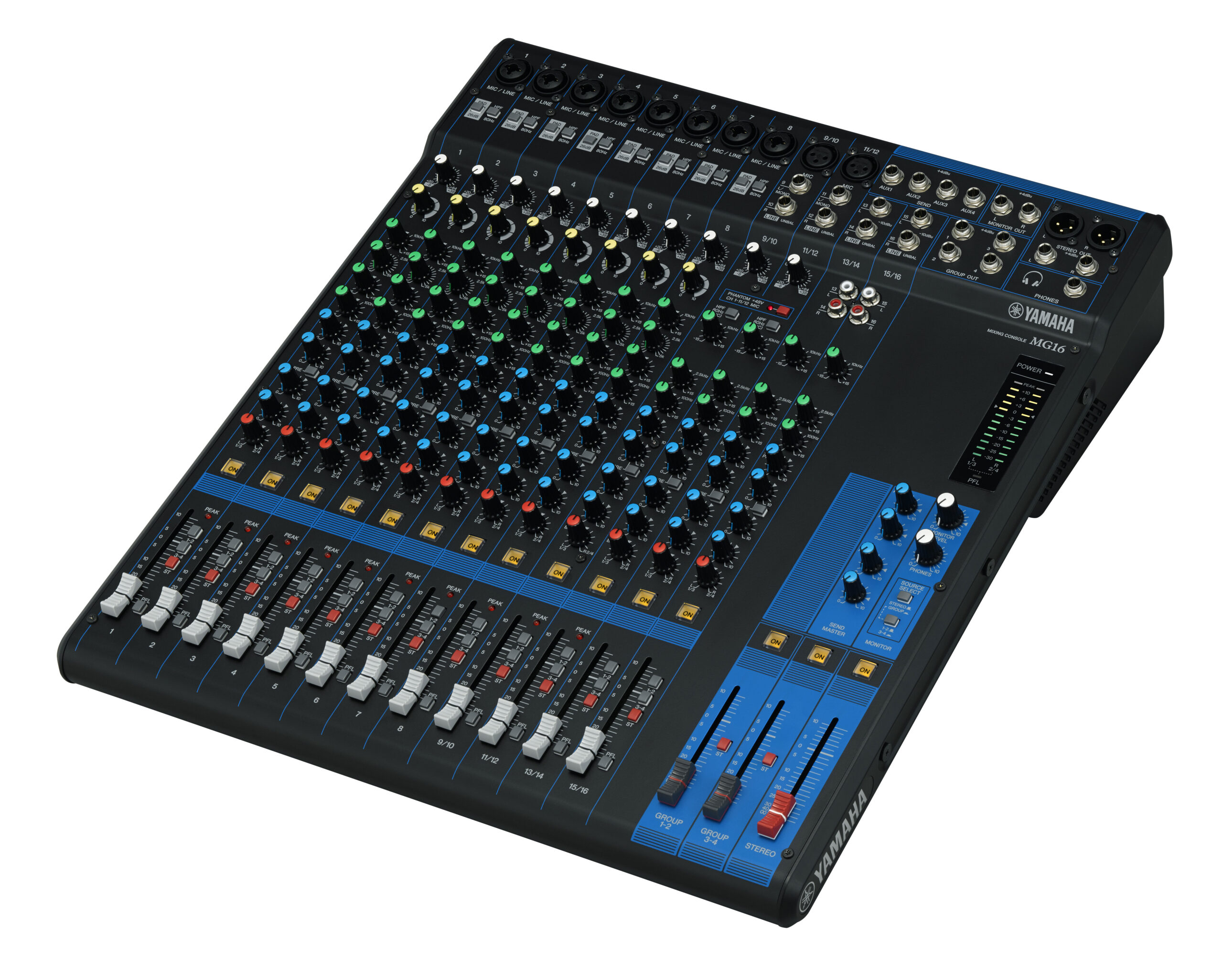

Product Highlights

• Small-Format Sound Reinforcement
• 8 Mono Input Channels
• 4 Stereo Input Channels
• D-Pre Microphone Preamplifiers
• Dual Digital Effects Engine
• X-pressive EQ Section
• 1-Knob Compressors
• 2 Digital Hybrid Stereo Channels
• Control & Playback with iPhone & iPad
• Integrated Universal Power Supply

• Channels	16 Line inputs (8 mono and 4 stereo)
  Groups	4 Group buses + ST bus
  AUX Input	2 Aux Sends + 2 FX Sends
  Compressor	Compressor CH1-8, HPF (100Hz 12dB/oct)
  EQ Section	Mono: ±15dB(Max.), High 8kHz shelving/ Mid 250Hz-5kHz peaking(CH1-8,9-16)/ Low 125Hz shelving Stereo:±15dB(Max.):High 8kHz shelving/ Mid 2.5kHz peaking(CH9-12)/ Low 125Hz shelving
  Effects	FX1:REV-X(8 Program, Parameter control), FX2:SPX (16 Program, Parameter control)
  Microphone Inputs	10,(100Hz 12dB/oct)
  Phantom Power	48V phantom power per channel
  Line Inputs	Line: 8mono + 4stereo Channel insert in: 8 Return: 1 stereo 2TR IN: 1 stereo
  Digital I/O	USB audio USB in: iPod, iPhone exclusive
  THD	0.02% (20Hz-20kHz@ +14dBu)
  Frequency Response	+0.5/-1.0dB 20Hz – 20kHz, refer to the nominal output level @1kHz
  EIN	-128 dBu (20Hz-20 kHz, Rs=150Ω, input gain = maximum)
  Residual Output Noise	-102 dBu (20Hz-20 kHz, Rs=150Ω, input gain = maximum)
  Crosstalk	-74dB @ 1kHz
  Power Requirements	100-240V 50Hz/60Hz Consumption: 55W
  Dimensions (WxHxD)	17.59 x 5.62 x 19.48" (447 x 143 x 495mm)
  Weight	19.84lb (9kg)

  Packaging Info
  Package Weight	26.0 lb
  Box Dimensions (LxWxH)	24.0 x 24.0 x 10.0"
