Dante-equipped compact digital mixing console delivering flagship sound quality, powerful processing, and rock-solid reliability—ideal for touring, broadcast, houses of worship, and installed systems.

Features

• 72 mono input mixing channels
• 48 Mix buses, 12 Matrix buses, and 2 Stereo buses
• Dual multi-touch displays: 12.1” main + 7” secondary screen
• 16 motorized faders (12 + 4) with flexible workflow
• 16 analog inputs and 16 analog outputs onboard
• Dante audio networking with 144 inputs / 144 outputs
• USB audio interface with 18 inputs / 18 outputs
• AES/EBU digital output
• PY expansion slot for system flexibility
• Built-in redundant power supply for mission-critical reliability
• Rack-mountable with optional RK1 rack kit

Overview

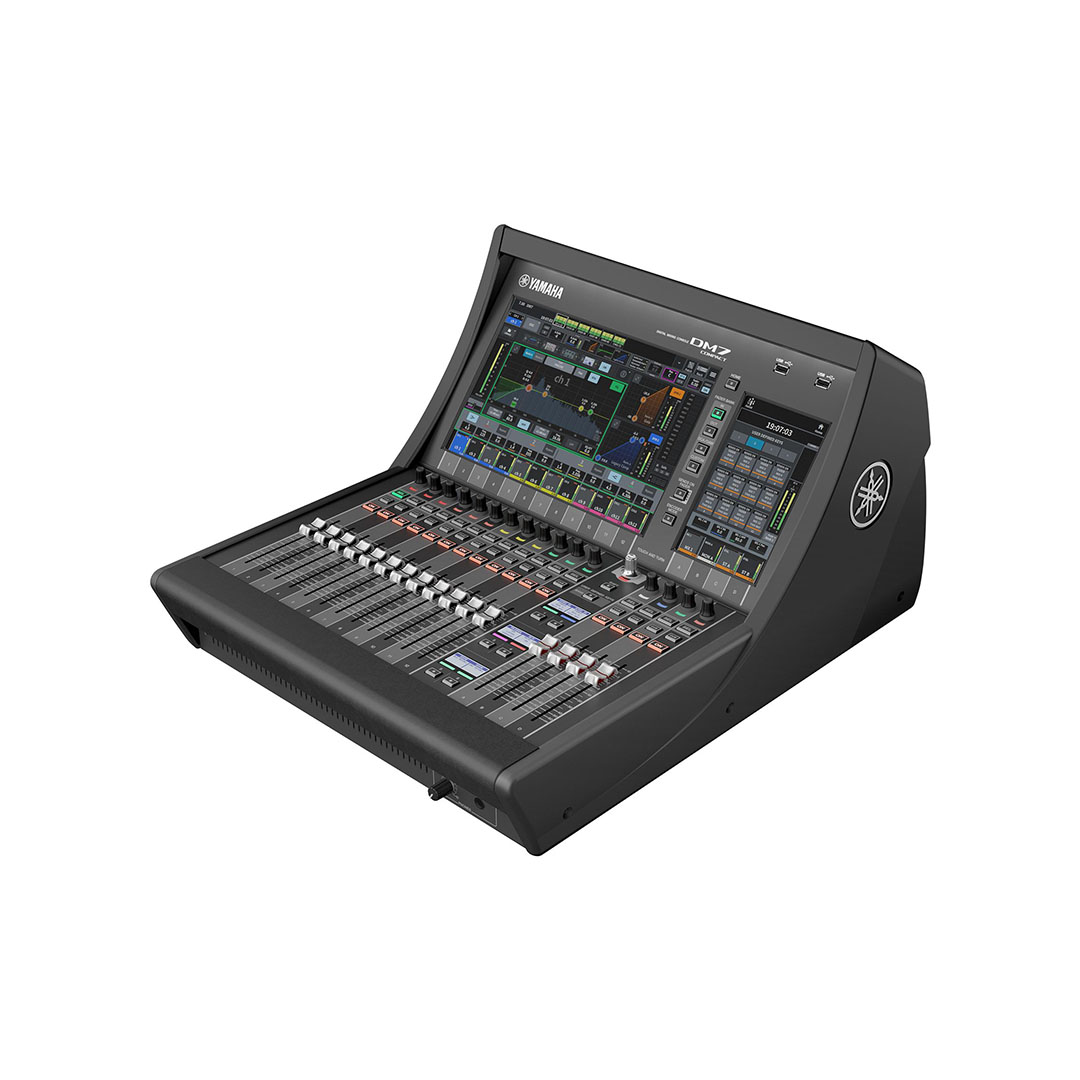

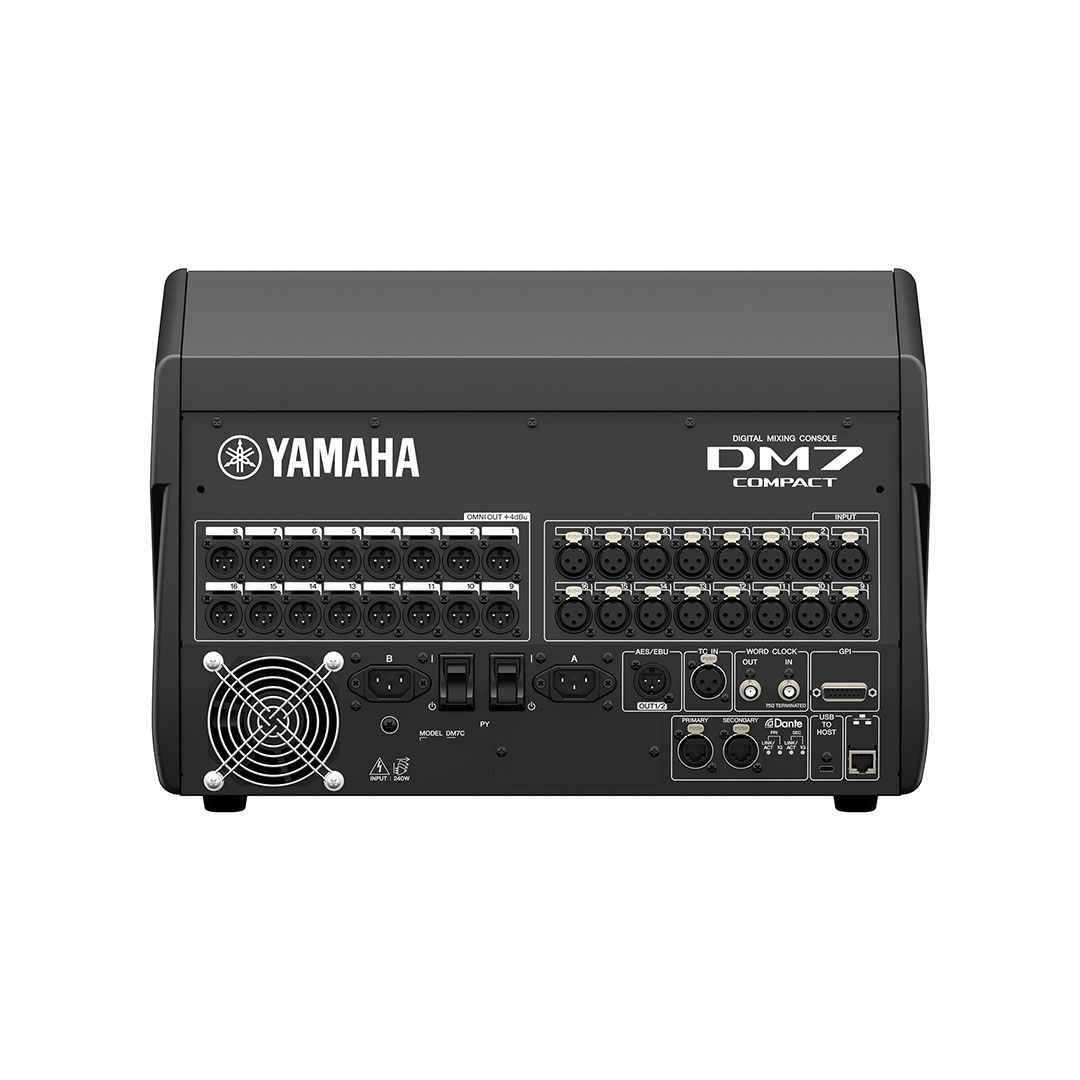

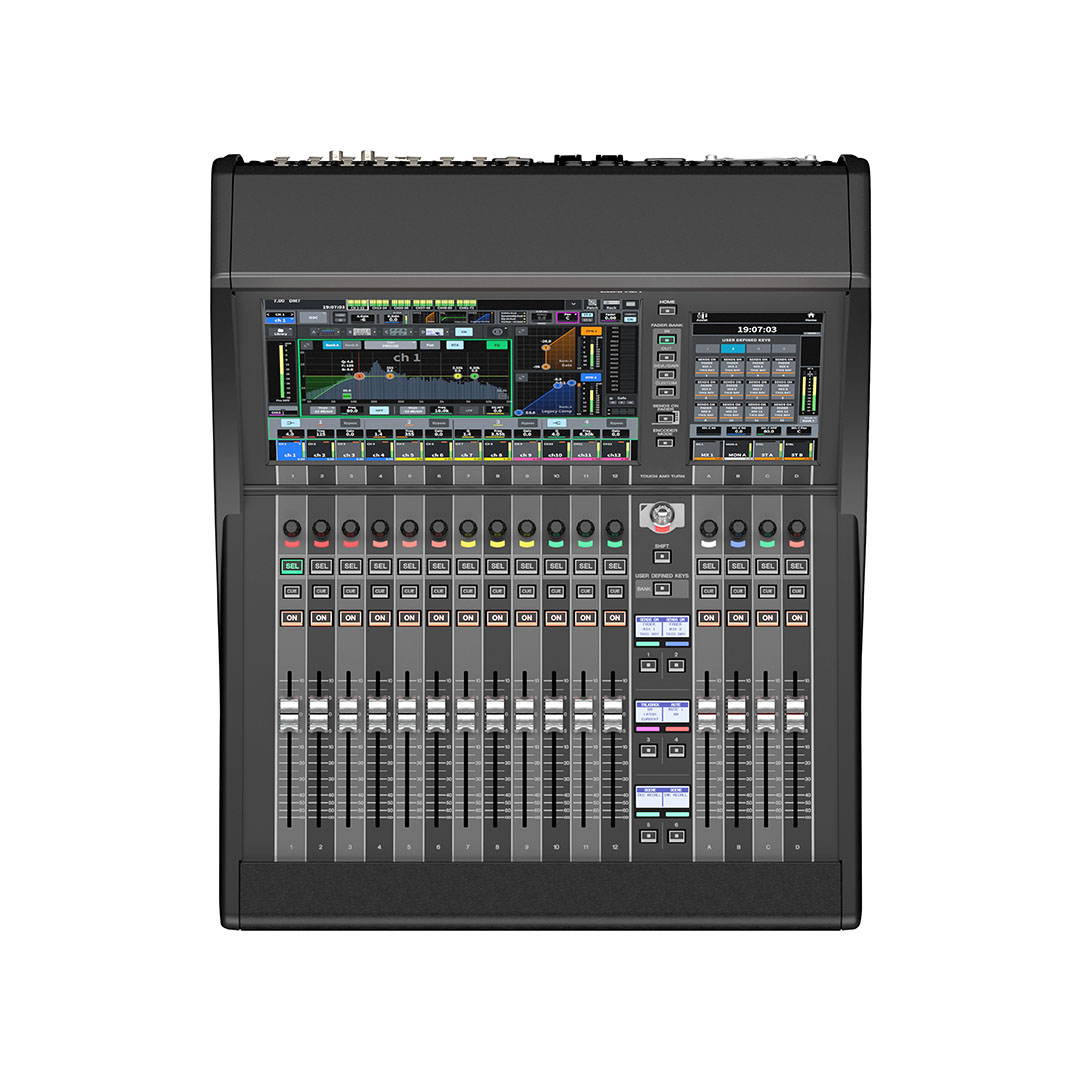

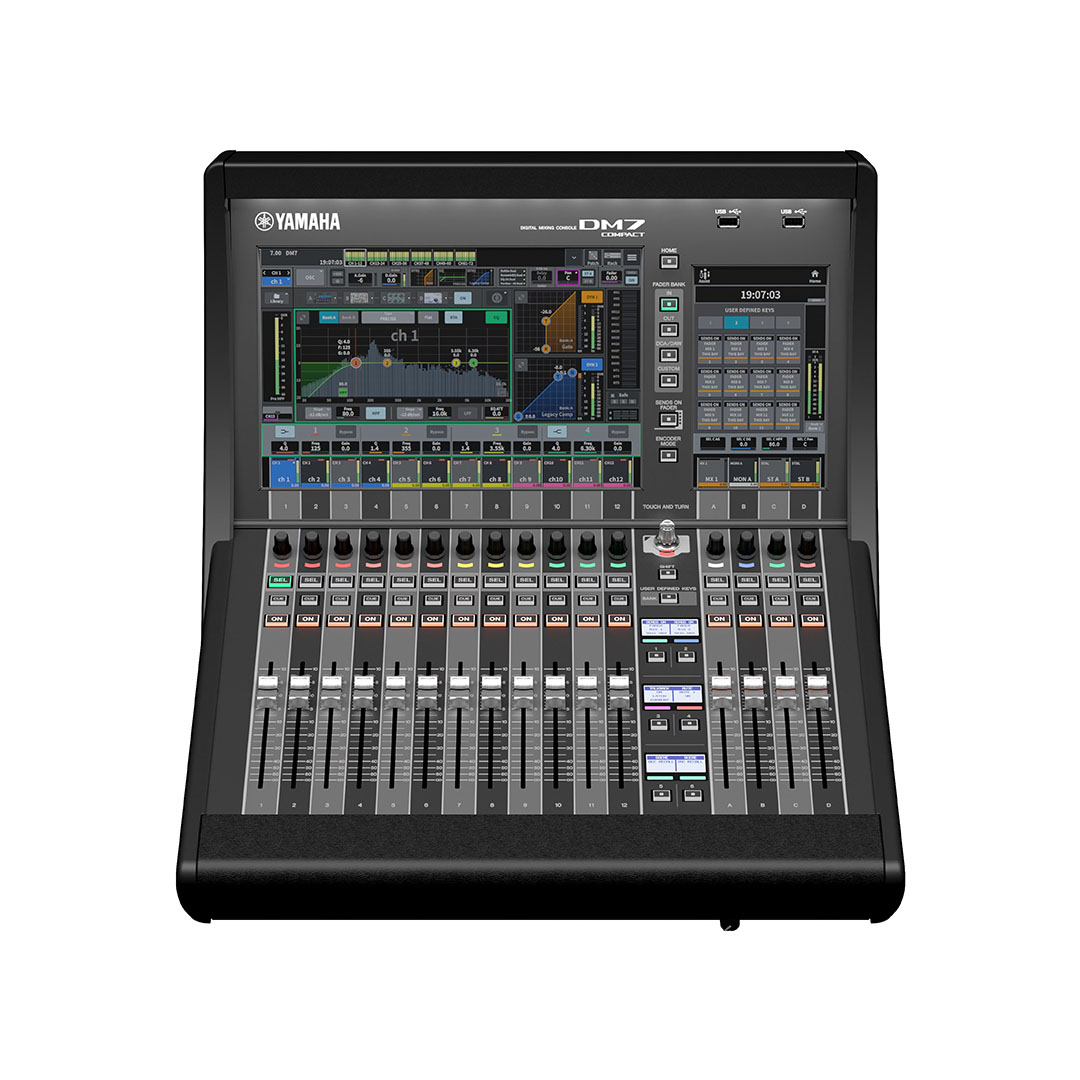

The Yamaha DM7 Compact (DM7C) brings the power and audio quality of the DM7 platform into a streamlined, space-saving console. With 72 mono inputs, extensive bus architecture, dual touchscreens, and massive Dante I/O capacity, it is designed to handle complex productions with ease. Its intuitive operation, redundant power supply, and flexible mounting options make the DM7C a dependable solution for live sound, broadcast, corporate AV, and permanent installations.
